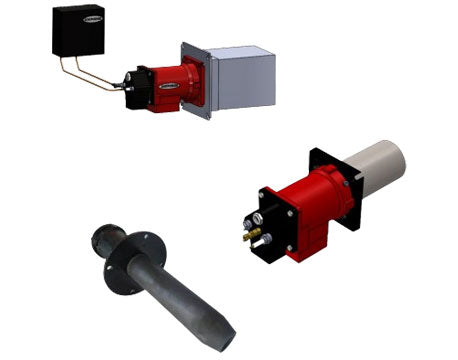

Automatic Furnace Burner
HOTPOWER-FC series burners are rugged in construction, highly reliable as well as energy efficient. They are suitable for high temperature applications (up to 1300°-1400°C). There are several models having firing range of 2 kg/hr to 150 kg/hr.
APPLICATIONS
Designed for demanding furnace environments
Furnaces up to 1450°C
High-temperature furnace operation.
Heat treatment
Melting, reheating, hardening, tempering and annealing.
Rotary furnaces
Reliable combustion for rotary furnace applications.
Heart / tunnel furnaces
Designed for continuous high-temperature operation.
Box-type / tilting furnaces
Flexible burner configuration for industrial furnaces.
Crucible furnaces
Suitable for controlled high-temperature heating.
PERFORMANCE
Capacity & firing range
| Burner Model | Heat Output (KW) | Fuel | Firing Modulation |
|---|---|---|---|
| FC3G | 15–40 | Gas | One/Two Stage/Modulating |
| FC8G | 20–75 | Gas | One/Two Stage/Modulating |
| FC12G | 30–120 | Gas | One/Two Stage/Modulating |
| FC15G | 45–180 | Gas | One/Two Stage/Modulating |
| FC25G | 70–275 | Gas | One/Two Stage/Modulating |
| FC40G | 115–450 | Gas | One/Two Stage/Modulating |
| FC60G | 165–650 | Gas | One/Two Stage/Modulating |
| FC100G | 310–1250 | Gas | One/Two Stage/Modulating |
